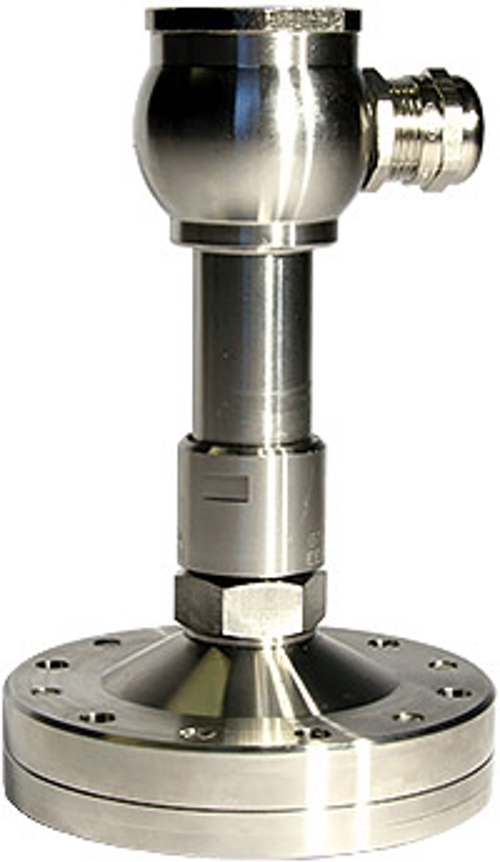

Pressure transmitter for cargo line manifold pressure

Designed for mounting on a flange welded to the cargo line. An acid resistant steel membrane coated with Teflon is installed between the transmitter and the cargo. The wide orifice area (59 mm) makes the installation more or less self-cleaning. We recommend that a protection cover is mounted above the pressure transmitter.

Main specifications

• Range : 0 to 40 bar absolute
• Accuracy : <±0.9% of fro></±0.9%>
• Temperature drift : <±0.01% of fro °c></±0.01%>
• Comp. temperape range : -0 to 60°C
• Long term stability : <±0.3% of fro year></±0.3%>
