Aluminium waterjets

The very high efficiency of our waterjet pumps offer higher speeds for the same power or substantially lower fuel consumption at a constant speed with less power.

Superior performance and manoeuvrability

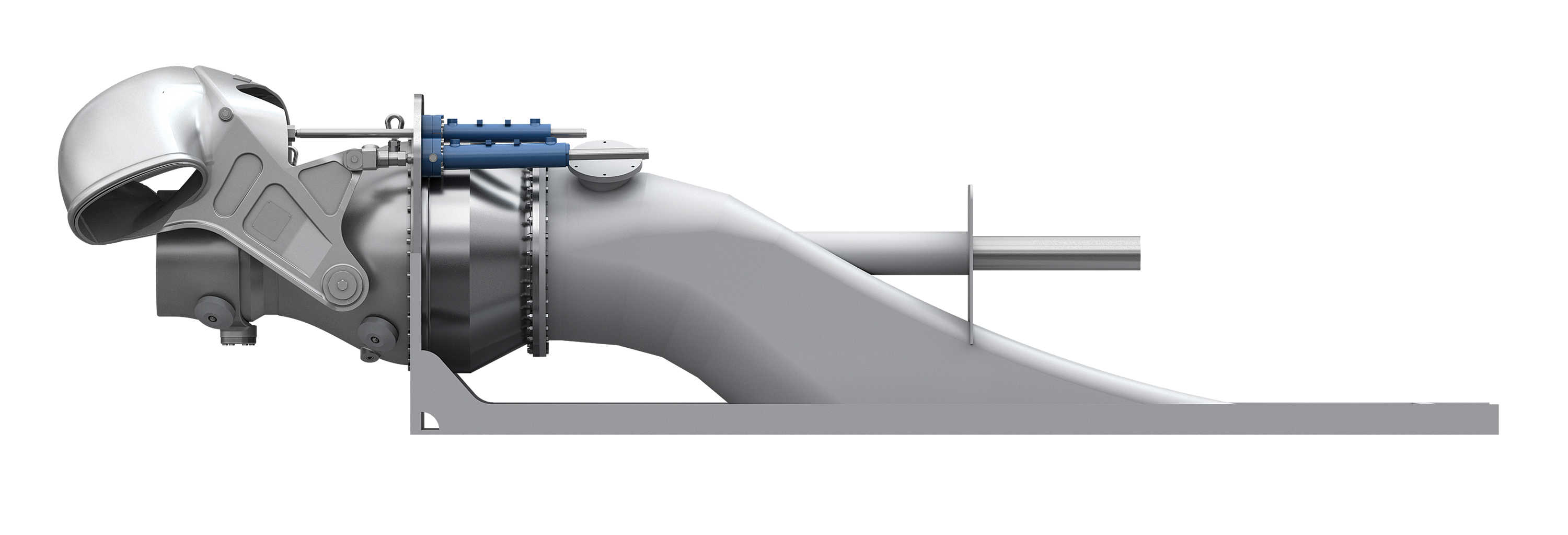

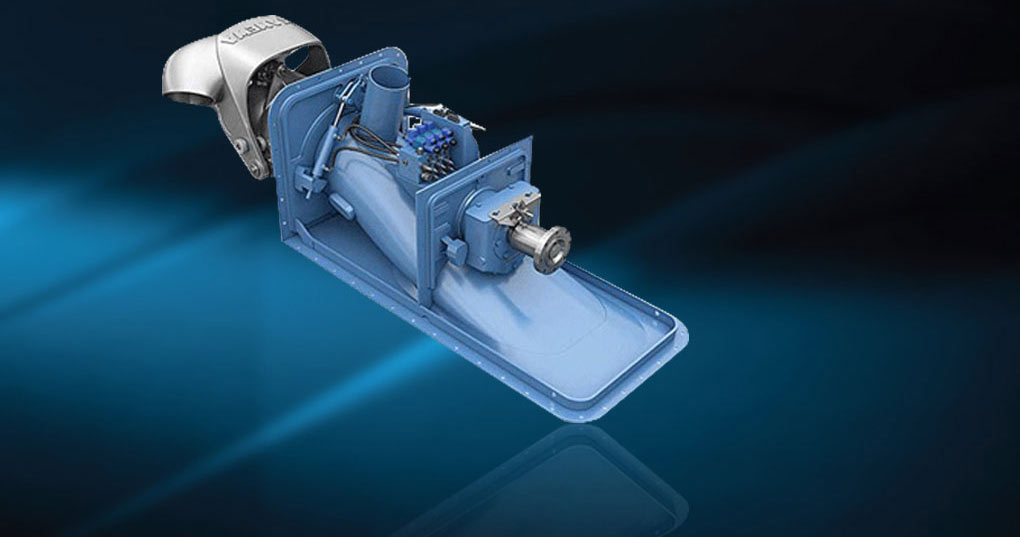

Major components in aluminium make for a light and efficient waterjet. The aluminium inlet duct is integral with the thrust bearing and hydraulic system making the waterjet a complete package. Aluminium series waterjets provide a high volume flow from the axial pump, with a good driving thrust at lower speeds making them suitable for both planing and displacement craft. They can be installed as single, twin, triple or quadruple systems to suit the vessel design, with steering/reversing or as boosters.


Key features

  • The inlet duct is fabricated from marine aluminium plate for light weight, optimum hydrodynamic performance and resistance to corrosion
  • The pump is a single-stage axial-flow design providing a high volume flow with good pulling thrust in a wide speed range
  • Usually, the aluminium series jets do not require reduction gears

Technical data

Waterjet aluminium series Max power (kW)
240 260
270 370
310 500
340 460
37 585
41 735
45 885
500 1100
550 1390
600 1800
67 2000

Designer benefits

  • Clearly improved delivery time
  • Reduced inboard footprint
  • Reliable and harmonised design
  • Simplified and reduced installation time, built on our proven method of utilising skid mounted jet with fully mounted and tested components in the factory

Owner benefits

  • Efficiency equals less fuel consumption
  • Standard solutions equals shorter delivery times, installation and design time
  • Better parts availability
  • Improved value for money
  • Lower total cost of ownership

Yard benefits

  • Clearly improved delivery time
  • Reduced inboard footprint
  • Reliable and harmonised design
  • Simplified and reduced installation time, built on our proven method of utilising skid mounted jet with fully mounted and tested components in the factory.

Performance


Services and support

  • 24/7 Technical support

    Our 24/7 technical support team is there to help at any time, day or night, wherever your vessel is.

    Contact us:

  • Spares

    We understand the importance of having the right parts, available in the right place, at the right time.

  • Training

    Ensure that your crew is properly and thoroughly trained. This will reduce operational risk, downtime and maximise return on asset investment.
