US TYPE AZIMUTHING THRUSTER

KONGSBERG US thruster family has set the industry standards for decades being one of our all-time most selling propulsion product, generating real value for our customers with products and integrated solutions tailored to your individual needs.

US thrusters have been the obvious choice for ship applications where reliability and performance really matter, which is proven by over 6000 globally delivered US units in the past 50+ years. Success story continues with new generation azimuth thrusters which are compatible with hybrid and electric solutions.

THRUSTERS DEVELOPED TOGETHER WITH OUR CUSTOMERS

Towing industry is one of the main market segments for US thrusters. Many tug owners today are more and more interested in the product life cycle costs than the lowest purchase price. Effective shipyards are searching ways to cut both time and costs from boat building processes. The shipping industry sets new standards for performance to be able to tow larger vessels. We have been listening to our customers and created new features accordingly, many of them being a win-win solution for all parties.

US PM improved L-drive design

The US PM has a new improved L-drive design which means it is lower in height and has been especially designed to meet Tug design and yard requirements. The improved US PM thruster design is a direct response to the modern ship designs like tugs, which require a compact unit due to less space in the thruster room. The new US PM L-drive design will be available in the most common sizes for tugs. The bollard bull can be enhanced even more by using one of our most recent nozzle designs, the PRO-DUCT nozzle.

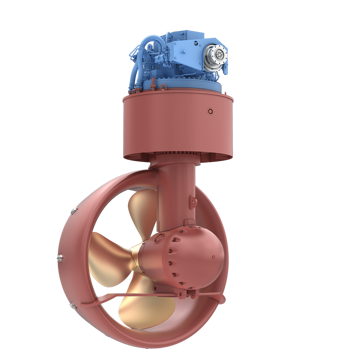

Our PRO-DUCT nozzle design was developed to further enhance the efficient bollard pull concept for US thrusters on tug applications, suitable for working in the most demanding conditions with up to 3,5% increase in bollard pull performance, compared to current Kongsberg design TK nozzle and propeller.

Flexible modular design, options to choose from

  • Drive: Hybrid- twin, Hybrid-dual, mechanic and electric
  • Clutch: On/off-, Low dissipation slipping- and High dissipation slipping clutch
  • Steering: Hydraulic and electric steering
  • Mounting: Several different Weld-in and Bolt-in options
  • Various sealing options based on application requirements
  • Propeller: CRP, FP and CP with multiple different nozzle sizes

Future proof digital features:

  • Condition based monitoring system
  • Digital twin system for predictive maintenance
  • Remote access and diagnostics for control system
  • Remote and autonomous operation compatibility
  • Integrated control system for thruster and deck machinery

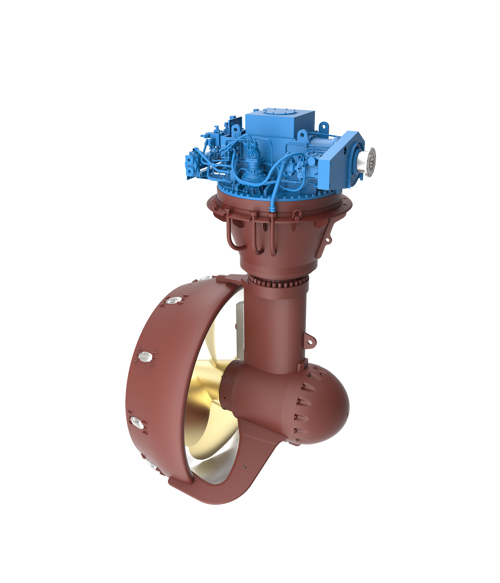

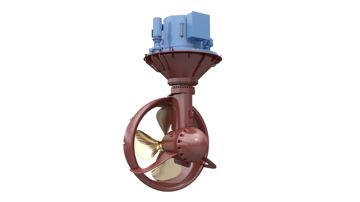

US PM L-Drive thruster

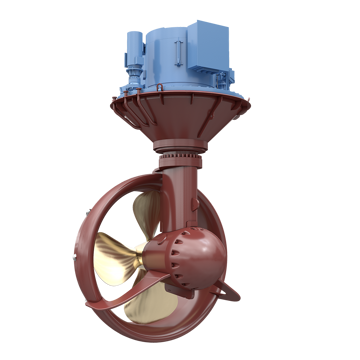

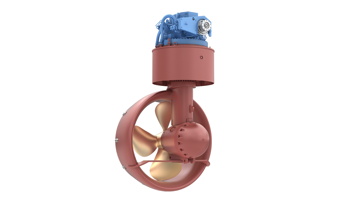

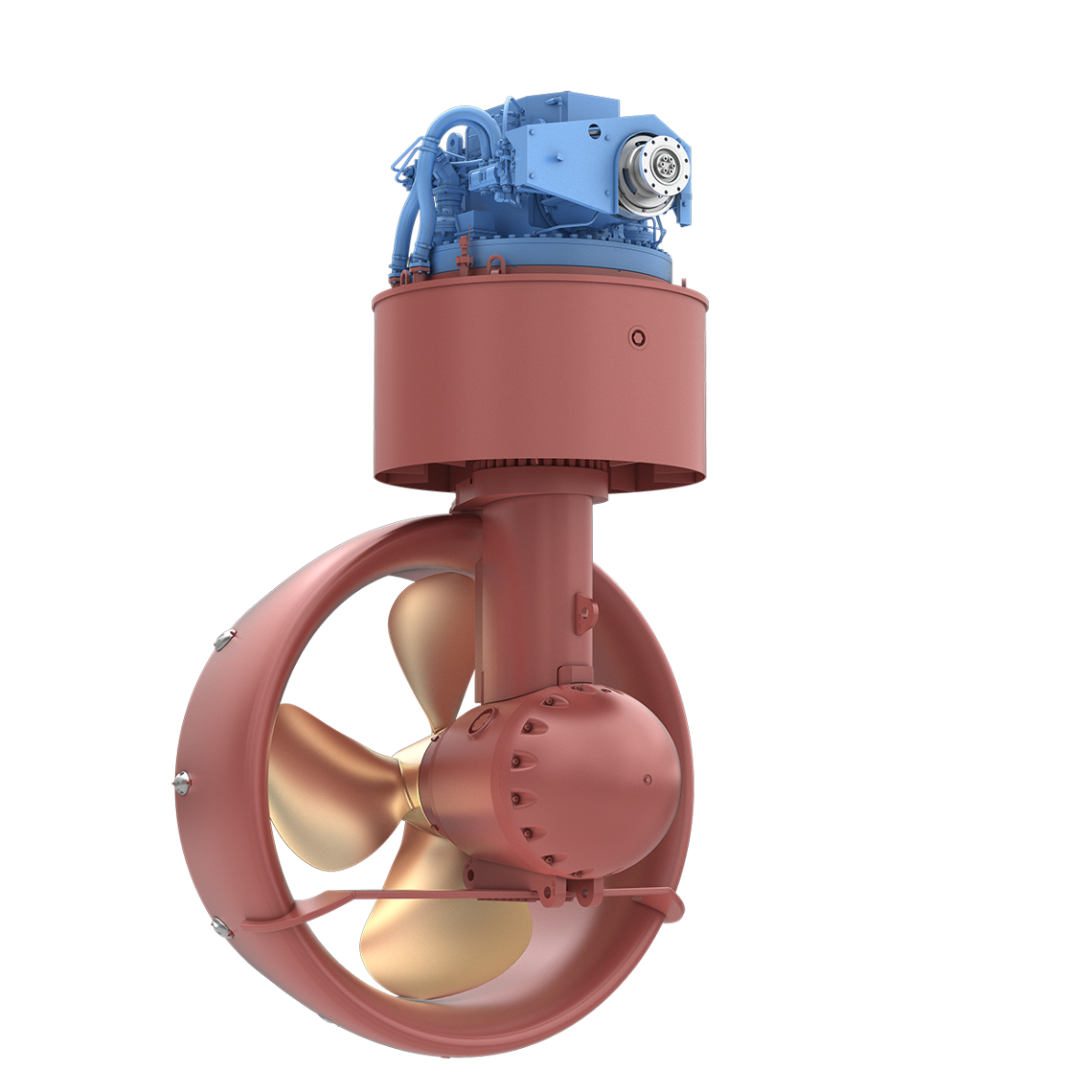

US255 with Pro-Duct

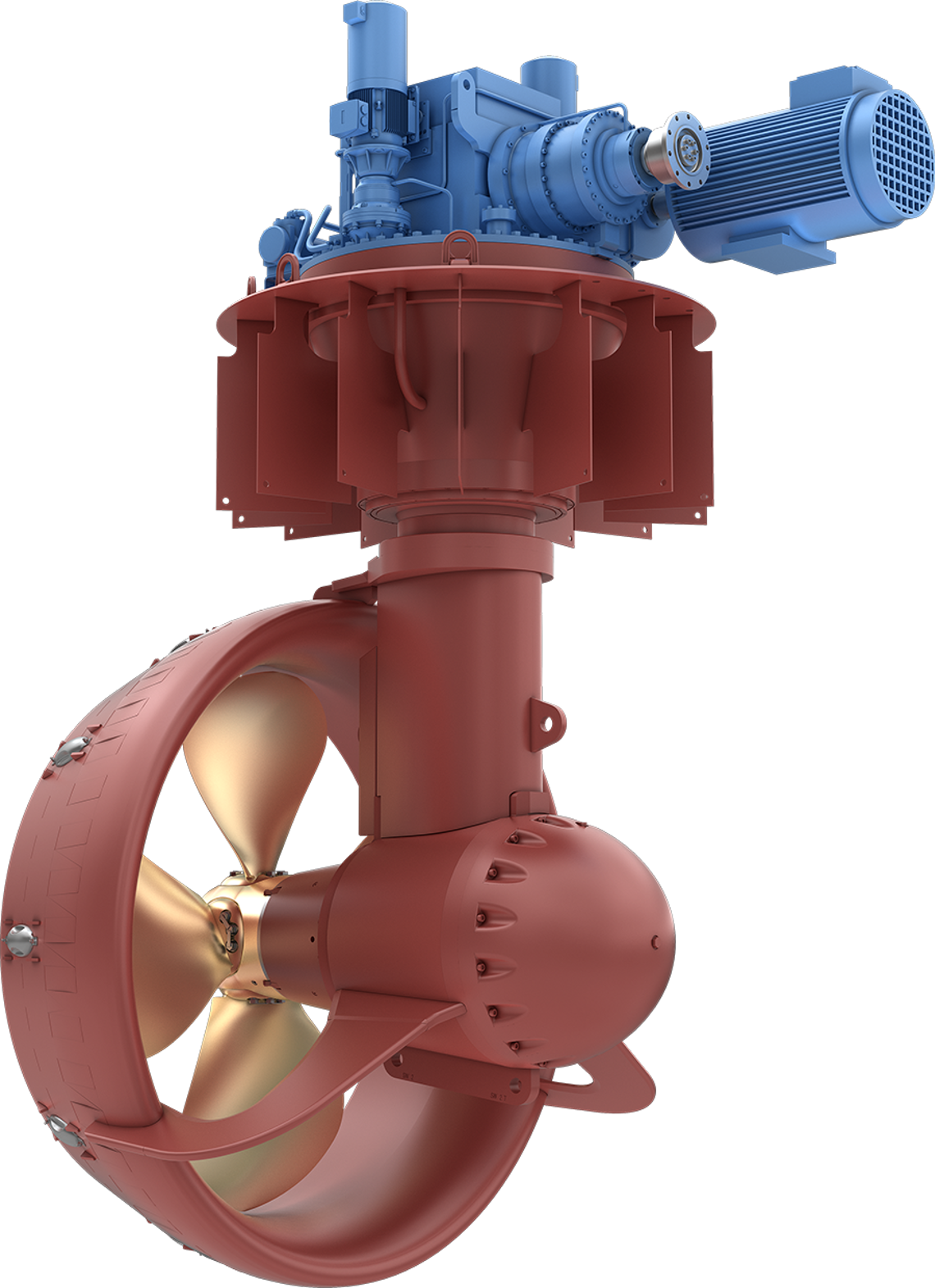

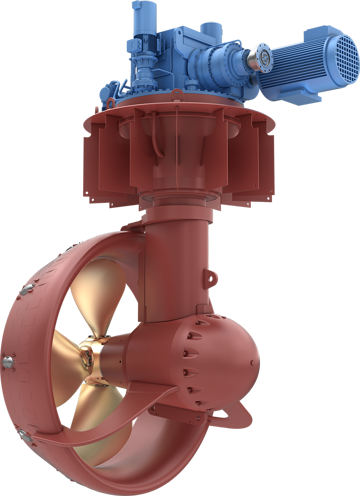

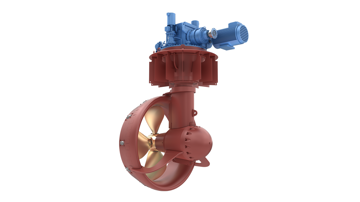

US with dual input, Hybrid

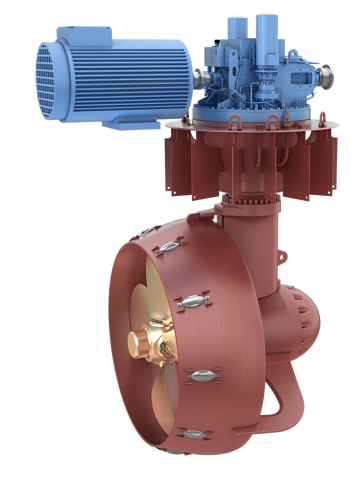

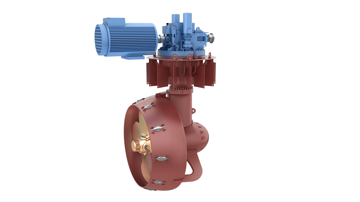

US Thruster twin input

  • US PM L-Drive thruster

  • US255 with Pro-Duct

  • US with dual input, Hybrid

  • US Thruster twin input

Superior Thrust Performance

  • Unique propeller and nozzle combinations to enable highest efficiency at design point
  • Inhouse HRC hydrodynamic research center with cavitation tunnels for
  • R&D and customer projects.
  • Project specific CFD modelling capabilities

Value adding services:

  • Extended thruster coverage
  • Fixed price overhaul solution
  • Online / offline Condition monitoring services
  • Thruster exchange pool
  • Energy management system
  • Global service coverage

TECHNICAL DATA

US Thruster
Type
Propeller Dia.
Ducted [mm]
Max. power.
[kW]
Bollard Pull [mtons]
with 2 x AZM, max Power
55 1050 350 11
105P6 1300 500 17
105P9 1500 750 24
1600 750 25
155P12 1600 900 29
1800 1100 35
155P14 1800 1150 37
2000 1370 45
165 2200 1471 50
2400 1340 50
205 2300 1870 60
2400 2000 65
2500 2000 67
2800 2000 70
255 2600 2390 77
2700 2560 81
2800 2560 85
3000 2600 91
265 3000 2800 99
35 2800 2790 91
3000 2900 97
305 3000 3200 104
3200 3300 111
355 3200 3600 117
3500 4050 135
3600 4050 140
60 3800 5500 174
4000 5500 180

US Thruster Picture carousel: US PM-L Thruster,Hybrid US Thruster with Dual input, Hybrid US Thruster with Twin input, US255 with Pro-Duct
