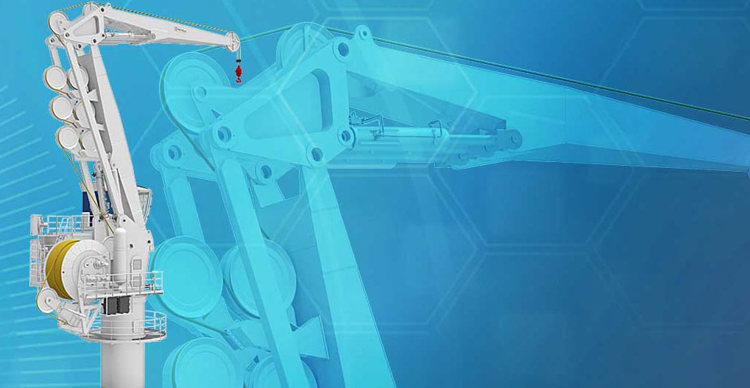

Dual Drag Link crane (Subsea)


Providing unique lifting performance, the Dual Draglink Crane has increased coverage area on full load, outstanding max load lifting height enabling long and wide arrangements. The crane is designed to handle both steel wire and fibre rope.

We offer a range of offshore cranes up to 400 tonnes load using field proven fibre rope handling technology. The cranes are fully integrated with our deck machinery handling and control systems and offer unparalleled performance as well as reliability and comfort. Through our cable traction control technology using fibre rope, our cranes can operate at virtually unlimited depths. Because the selected rope has neutral buoyancy, the crane can handle loads to its full rated capacity down to its maximum water depth. Cranes using heavy steel wire must begin derating at depths more than about 700m, so by 2,500m a 400t wire crane can only handle the same load as a 250t FRC.


The dual draglink crane can handle both fibre rope and steel wire and has a geometry providing unique lifting performance. The drag link geometry provides a good working height and allows for short radius operations to make use of the deck area near the pedestal. The horizontal boom provides active heave compensation (AHC), significantly increasing the life time of the lifting line compared to when AHC is performed by means of the winch. Our rope management system monitors rope condition enabling abraded or damaged sections to be easily repaired by splicing onboard.

Key features

  • Work area: 50T at 11.5 m, 23T at 20 m
  • Active heave compensation
  • Constant tension on seabed, with auto landing and lift-off
  • Pull limit and controlled emergency pay-out
  • Continuous 360 slewing
  • The crane is certified according to the rules of DNV 2.22 Lifting appliances
  • Paint steel structure; Acc. STPS 1008/ metalised
  • Standard color top coat; RAL 9010/ blue white
  • State-of-the-art operator cabin
  • Operator cabin can be placed on either side of tower
  • High quality – low maintenance, robust and field proven technology
  • High-end control system

Options

  • Rope monitoring
  • Auxiliary winch
  • Personnel lifting
  • Tugger winches
  • Slew locks for cradlefree parking
  • Remote access
  • Anti-collision system
  • Pedestal
  • Heavy lift arrangement
  • Easy inspection of rope
