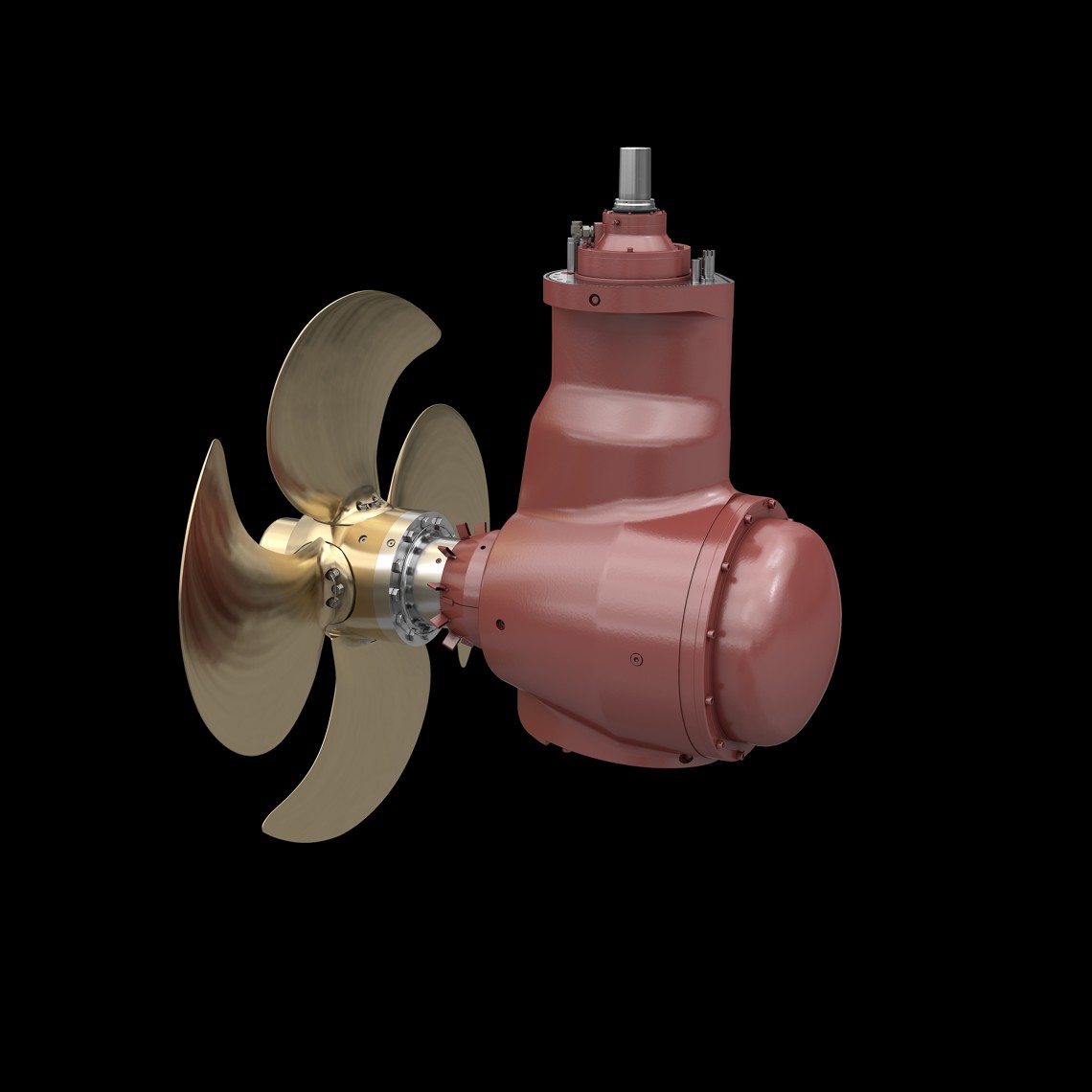

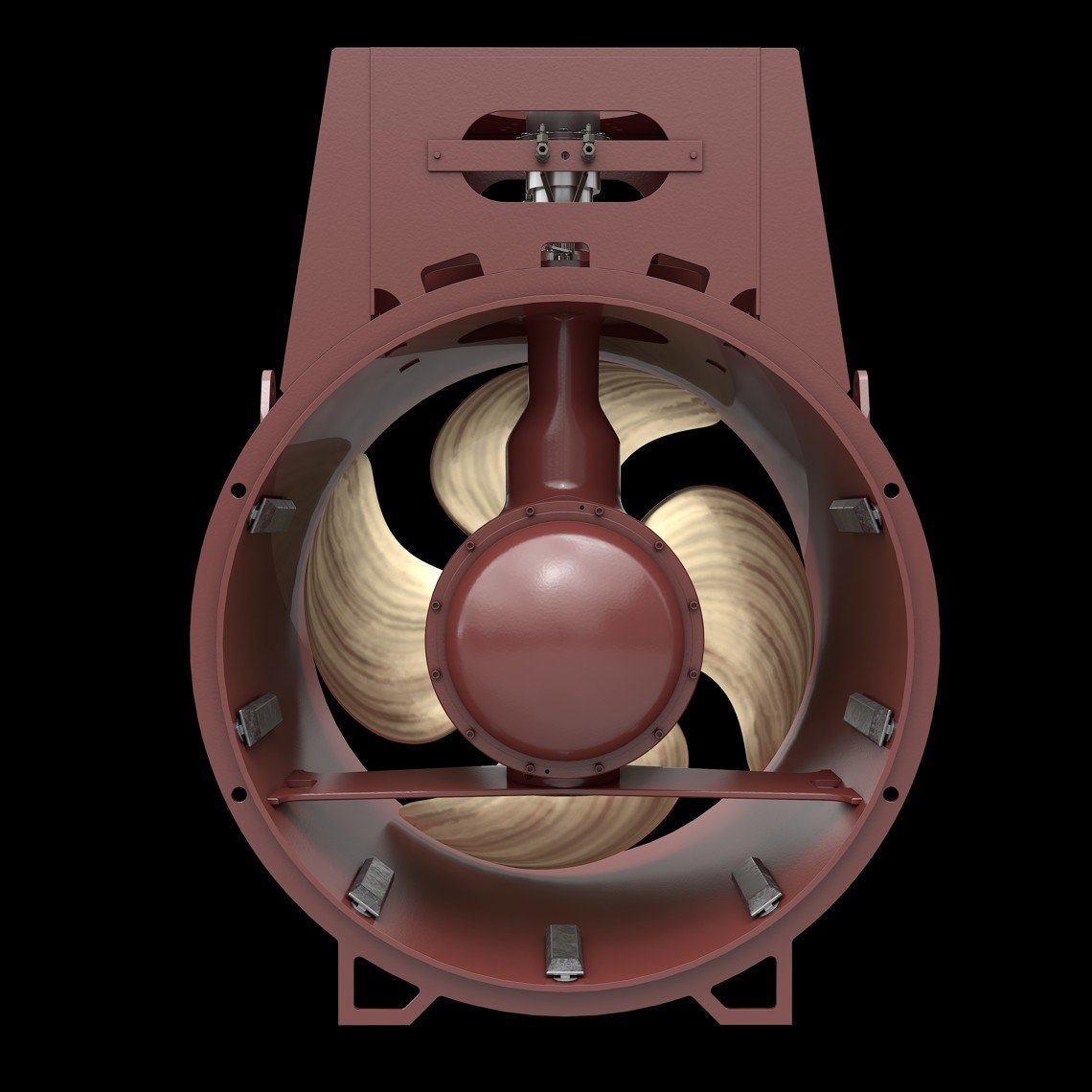

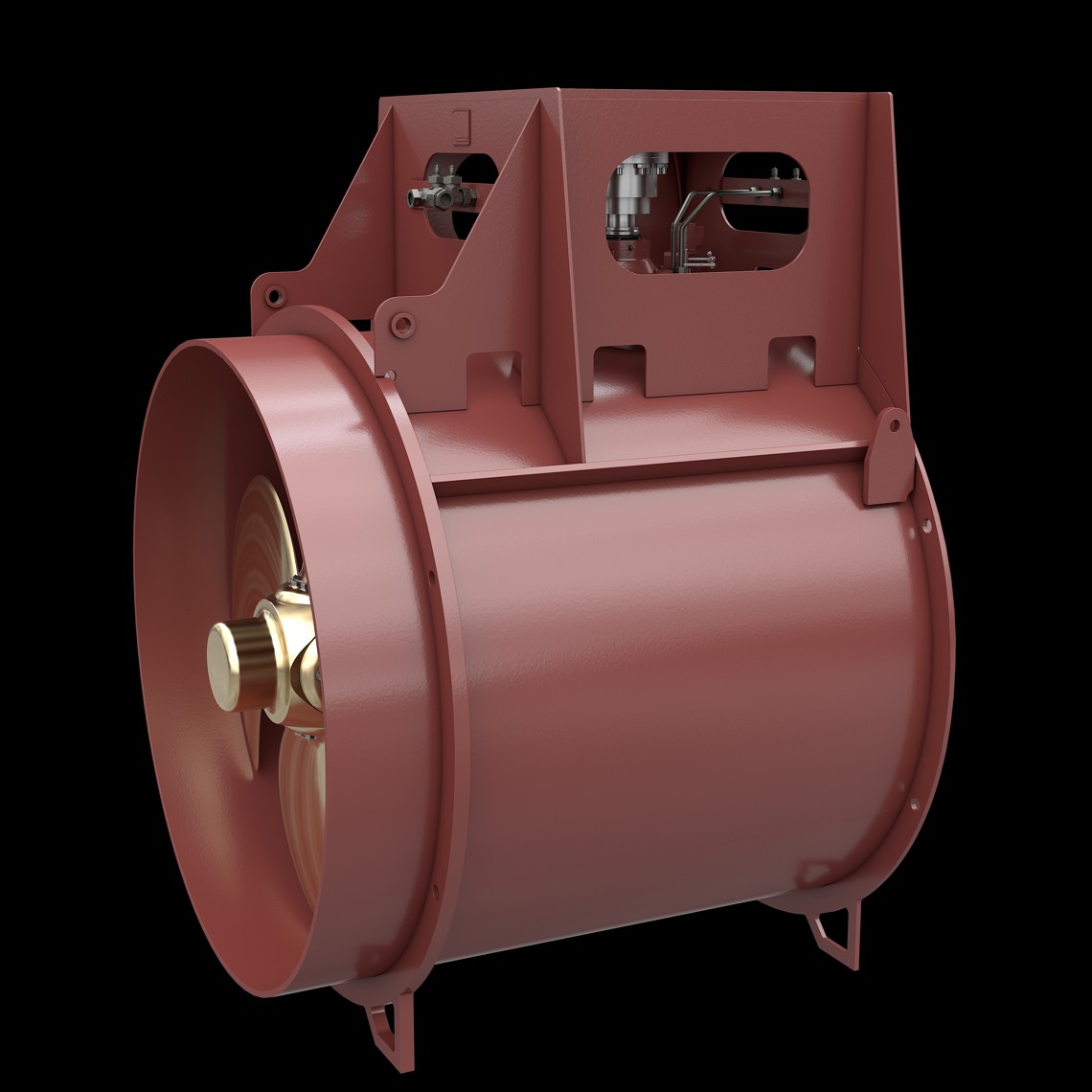

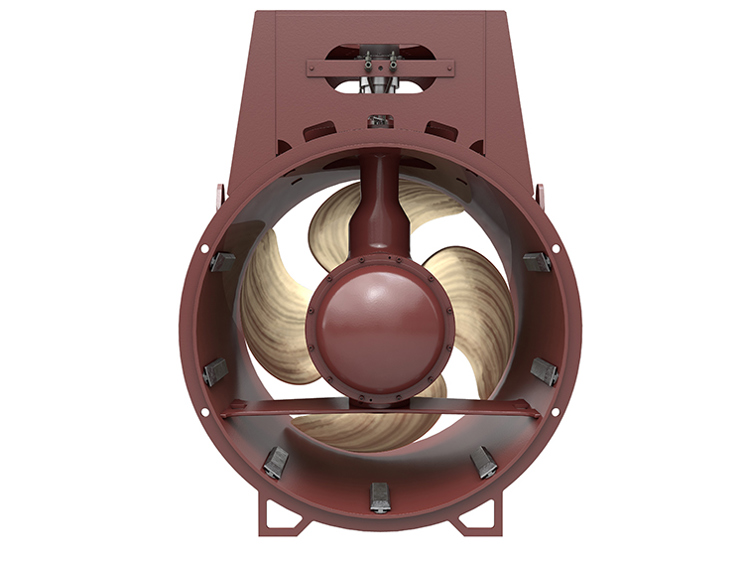

Tunnel Thruster, type TT
TUNNEL THRUSTER, type TT
Our Standard Tunnel Thruster. We have built and delivered over 3700 units of the TT, divided by 11 sizes.
Key benefits:
- Well proven design
- Flexible design for optimal solutions in different operating conditions
- Hydrodynamic optimised blade design for various operating profiles
- Low installation and maintenance cost
- Controllable pitch and Fixed Pitch solution
- Approved for use of EAL oil.
- Spare thrusters Available in Thruster Support Pool.
- Type approved by DNV-GL up to ICE class 1A*
- Non-polluting air space seal as option
TECHNICAL DATA
| Thruster Type | Propeller Dia. (mm) | Propeller Type | Max. Power (kW) |
| TT1100 | 1100 | CP/FP | 400 |
| TT1300 | 1300 | CP/FP | 650 |
| TT1650 | 1650 | CP/FP | 1091 |
| TT1850 | 1850 | CP/FP | 1361 |
| TT2000 | 2000 | CP/FP | 1639 |
| TT2200 | 2200 | CP/FP | 1882 |
| TT2400 | 2400 | CP/FP | 2311 |
| TT2650 | 2650 | CP/FP | 2878 |
| TT2800 | 2800 | CP/FP | 2646 |
| TT3000 | 3000 | CP/FP | 3665 |
| TT3300 | 3300 | CP/FP | 4500 |
