High temperature thermocouple sensors with cable

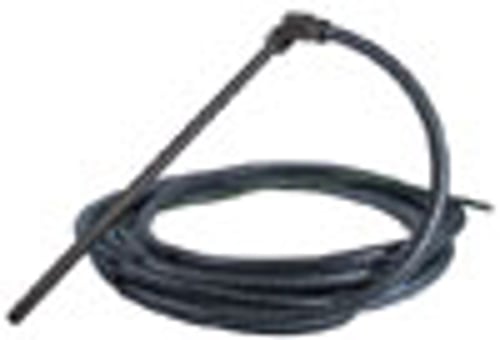

MB1168 Temperature Sensor with cable

Identical to MB715 except for the diameter of the sensor pipe which is Ø 9.5 mm.

Key features

• Sensor temperature range : 0 - 800 °C
• Sensor element : NiCr-NiAl
• Connection : 2-wire, Single or Double element
• Material sensor pipe : AISI316
• Protection : IP56
• Weight (MB1168S186K60) : 1230 g

• Measurements drawing MB1168

MB415 Temperature Sensor with cable

Key features

• Sensor temperature range : 0 - 800 °C
• Sensor element : Fe-CuNi or NiCr-NiAl
• Connection : 2 or 4 wire

• Measurements drawing MB415

MB715 Temperature Sensor with cable

Identical with MB1168 except for the diameter of the sensor pipe which is Ø 12 mm.

Key features

• Sensor temperature range : 0 - 850 °C
• Sensor element : Fe-CuNi or NiCr-NiAl
• Connection : 2 or 4 wire
• Material sensor pipe : AISI316
• Protection : IP55
• Weight (MB715S186K15): 530 g

• Measurements drawing MB715
