Towing winches for Tugs

Reliable power and control for demanding tug operations

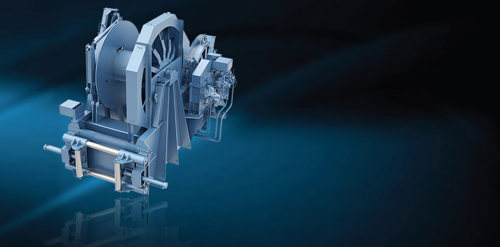

Towing winches

Built for strength, precision, and operational reliability, our towing winch systems are trusted by major tug operators around the globe. Designed for harbour, escort, and coastal tugs, our versatile winch portfolio supports a wide range of operations – from heavy-duty towing to emergency response in challenging conditions.

©Handling|Customisable winch solutions for every Tug operation
Skip to content

Available in both hydraulic and electrically driven configurations, our towing winches deliver excellent pulling forces, with enhanced control and spooling accuracy for safe and efficient towing operations.

Key features

  • High pulling forces: Up to 140 tonnes for standard configurations; up to 300 tonnes for waterfall winches.
  • Efficient control: Delivered with wheelhouse display showing rope tension, speed, length, and system alarms.
  • Fast clutch release: Friction clutch disengages in under 3 seconds for responsive operations.
  • Flexible drum options: Single and double drum designs for operational adaptability.
  • Optional ergonomically combined winch controls: Winch controls combined with the Aquapilot thruster control system lever available.
  • Suitable for harsh environments: Built to perform in challenging conditions.

Performance benefits

  • Hydraulic and electric options to match vessel requirements and onboard power systems
  • High brake holding load provided by reliable band brake ensures secure towing
  • Radial piston motors (hydraulic) for high torque and dynamic response
  • Frequency converter-driven electric motors for energy-efficient operation
  • Minimal oil on deck with electric winch systems

Customisable winch solutions for every Tug operation

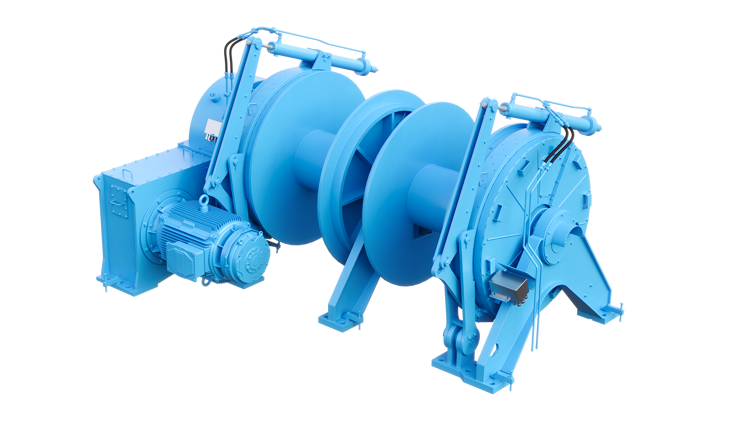

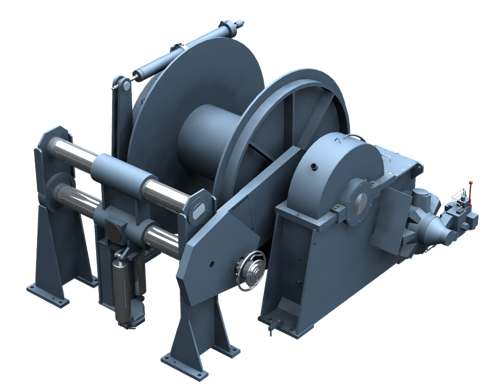

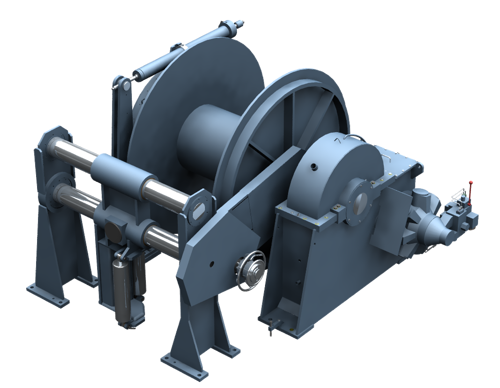

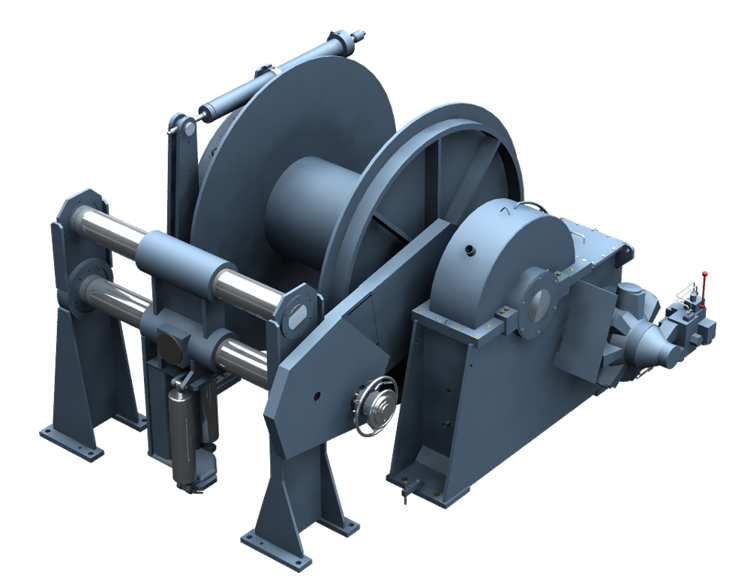

Hydraulic Towing Winch Electrical Towing Winch
  • Pulling force up to 140 tonnes
  • High brake holding power - reliable band brake
  • Rapid friction clutch release in under 3seconds
  • Single or double drum configurations
  • High-torque, low-speed radial piston motorfor superior dynamic performance
  • Powered by PTO pumps or hydraulic powerpacks
  • High rope speeds for demanding operations
  • Pulling force up to 35 tonnes
  • High brake holding power - reliable band brake
  • Rapid friction clutch release in under 3 seconds
  • Single or double drum configurations
  • Electric drive with frequency-controlled motors
  • Compact hydraulic power pack for brake and clutch actuation
  • Less oil on deck compared to hydraulic towing winches
  • High rope speeds for fast, responsive handling

Winch control system

Our control systems are based on decades of operational knowledge to enable safe and efficient operations for our customers. We commit to supporting our customers through the lifecycle of their control system and ensure that global, market, regulatory and technological challenges do not impact their business.

Ready to take control of your towing operations?

Speak with our specialists to configure a towing solution that meets your vessel’s operational demands and lifecycle strategy.

Global Customer Support

We support your systems across their full lifecycle — from specification and commissioning to maintenance and upgrades.

  • Spare parts and lifecycle support
  • Onboard and remote diagnostics
  • System upgrades and retrofits
  • Training and documentation services

Explore →

Lifecycle support for your vessel
