TOPAS PS40
Parametric sub-bottom profiler
TOPAS PS40 is a parametric sub-bottom profiler system for medium ocean depths.
Concept
The idea of a parametric sub-bottom system is to use higher frequencies to generate the low frequencies that you need for sub-bottom profiling. The parametric conversion is a physical process that happens in the water when two signals with high SL is transmitted, the low frequency differential signal – or the parametric signal is created. A benefit of this principle is that you can do high performance sub-bottom profiling with smaller transducer arrays.

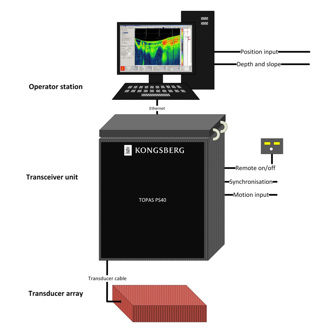

Configurations
TOPAS PS40 comes in 2 different configurations:
PS40 standard
PS40 modular with pitch stabilization
TOPAS operator software software on the Hydrographic Work Station (HWS)
Key features
- Primary source level: >240 dB
- Source level @4 kHz: 197 dB
- Primary frequency range: 35-45 kHz Parametric freq.: 1-10 kHz
- Beam width: ±1.5x2.5°
- Operational depths: <5 - >2000 m
