TOPAS PS120
Parametric sub-bottom profiler
TOPAS PS120 is a parametric sub-bottom profiler system for shallow waters.
Concept
The idea of a parametric sub-bottom system is to use higher frequencies to generate the low frequencies that you need for sub-bottom profiling. The parametric conversion is a physical process that happens in the water when two signals with high SL is transmitted, the low frequency differential signal – or the parametric signal is created. A benefit of this principle is that you can do high performance sub-bottom profiling with smaller transducer arrays.

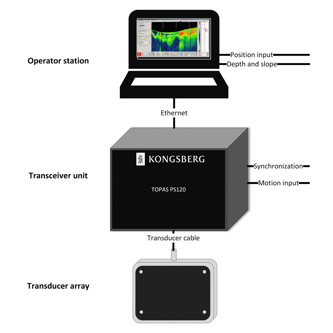

Configurations
TOPAS PS120 comes in 2 different configurations:
PS120 standard
PS120 for rack mounting
Hydrographic Work Station or laptop
Key features
- Primary source level: 238 dB
- Source level @4 kHz: 186 dB
- Primary frequency range: 70-100 kHz
- Parametric freq.: 2-30 kHz
- Beam width: ±1.5x2°
- Operational depths: 2 - >500m
