System description
Use Simrad TV80 to get a full overview of the fishing situation.
With the TV80 you can record all the data received from the sensors, and save them as data files on your Processor Unit. You can copy the files to other vessels, or to net and trawl door manufacturers. The TV80 also generates time-stamped data files with all the relevant information appreciated by scientists. While displaying the data provided by the sensors on your gear, the TV80 also calculates additional data based on the information from the catch monitoring and navigation sensors.
The TV80 can receive information from the following gear monitoring systems:
- Simrad PI32
- Simrad PI44
- Simrad PI54
- Simrad ITI
- Simrad FS70
The TV80 can be connected - and can also control - the following gear monitoring receivers and transceivers:
- Simrad PI50
- Simrad PI60
- Simrad SR15
- Simrad SR70
- Simrad TP90
Simrad SR15 Receiver

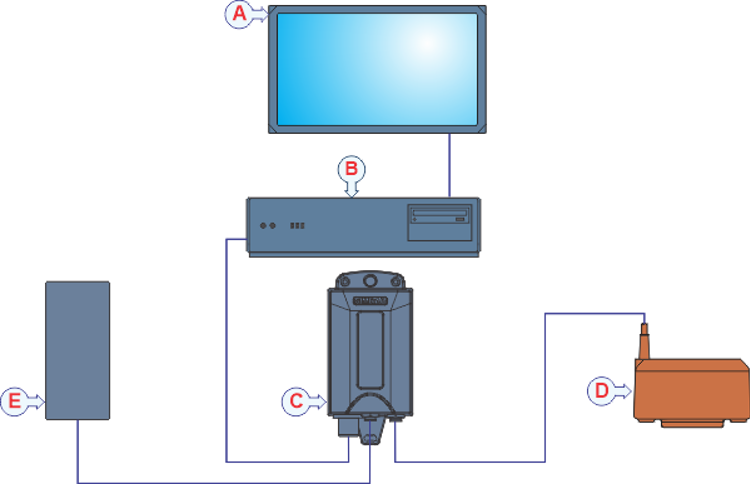

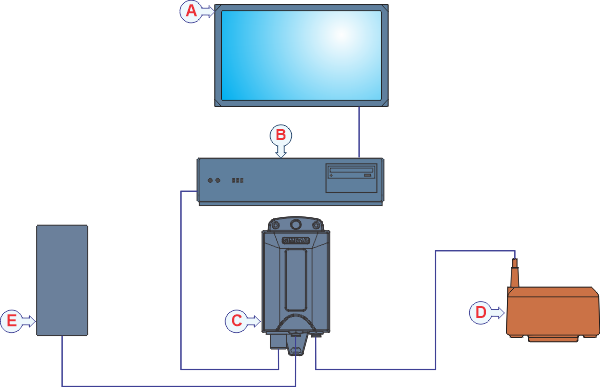

Simrad TV80 with an SR15 receiver (shown in the illustrations) is a small, but versatile system.
(A) Display(s)
(B) Processor Unit (computer)
(C) SR15 Sensor receiver
(D) Hydrophone
(E) Power supply
Simrad SR70 Receiver

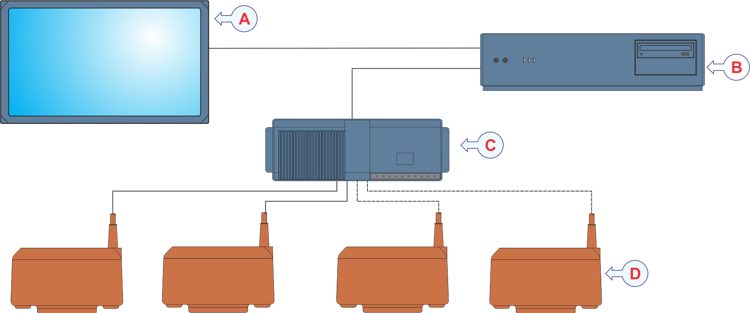

Simrad TV80 with an SR70 receiver (shown in the illustrations) is a larger system. It allows you to connect up to four hydrophones.
(A) Display(s)
(B) Processor Unit (computer)
(C) SR70 Receiver
(D) Hydrophones
Simrad TP90 Transceiver

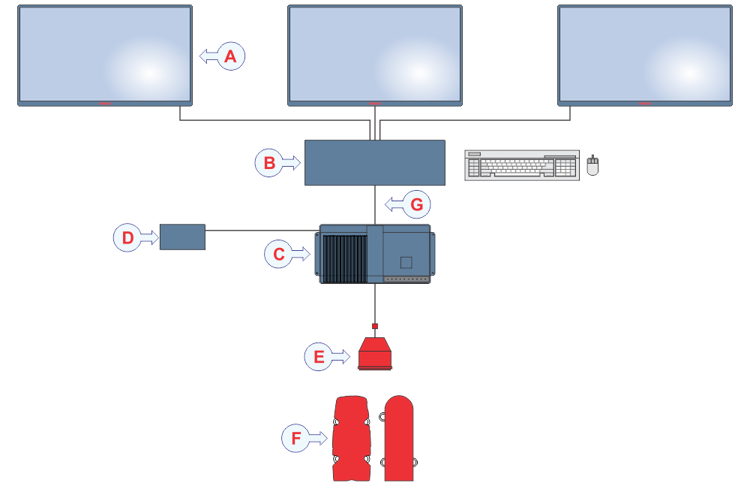

This illustration shows how the Simrad TP90 Transceiver is used in a TV80 Gear Monitoring system.
A Simrad TV80 gear monitoring system fitted with PxPos and ITI sensors, and the Simrad TP90 Transceiver allows you to measure the range and bearing of each sensor on the trawl.
You can find more information about the Simrad TP90 Transceiver here.
(A) Display(s)
(B) Processor Unit (computer)
(C) TP90 Transceiver
(D) Power Supply Unit
(E) Transducer
(F) ITI and/or PxPos sensors
(G) Ethernet connection
