Simrad TP90
While PX and PxPos are both fishing gear monitoring sensors with functional crossover, they are designed to meet different needs and achieve different goals. The Simrad TP90 Transceiver is an optional part of the Simrad TV80 fishing gear monitoring system designed to provide information about the PxPos sensors' relative and absolute positions.
Data sheets
A Simrad TV80 fishing gear monitoring system fitted with PxPos sensors and the Simrad TP90 Transceiver allows you to measure the range and bearing of each sensor on the trawl. These measurements provide the position of the sensors relative to the vessel and, thus, the location of the trawl. When this position is known, you can avoid wrecks and other obstacles on the seabed, and in case of accidents, it can be an aid to recover the lost gear.
A Simrad TV80 system fitted with the TP90 Transceiver can replace an existing ITI system.
Read more about the Simrad TV80 here!
System diagram
This illustration shows how the Simrad TP90 Transceiver is used in a TV80 Gear Monitoring system. The TV80 comprises a Processor Unit and a display monitor. You can also connect a keyboard and a mouse.
(A) Display - Depending on personal and operational preferences, you can use one, two or three displays on your Processor Unit.

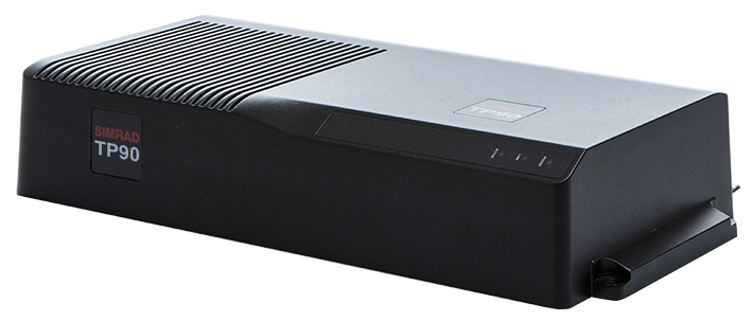

(C) TP90 Transceiver
(D) Power Supply Unit - The TP90 Transceiver requires an external power supply offering 12 to 15 Vdc, minimum 5 A. We provide a suitable power supply with your delivery.
(E) Transducer - The TP90 Transceiver can connect to one or two transducers. However, with the current software version only one transducer is supported.
(F) ITI and/or PxPos sensors - With the TV80, the TP90 Transceiver can receive information from the Simrad PxPos sensor and the Simrad ITI Spread, ITI Depth and ITI Height sensors.
(G) Ethernet connection - A high-quality Ethernet cable connects the TP90 Transceiver to the TV80 Processor Unit. You can extend the distance between the computer and the transceiver to a maximum of 70 metres. If a longer cable is required, cut it in half and insert an Ethernet switch to provide buffer amplification.
End-user documentation and installation drawings
End-user documentation
Online TP90 IETM Installation Manuals
Current software version
We recommend that you always keep your gear monitoring system upgraded with the latest software version. You must install the TpTransceiver software together with the TV80 software on the Processor Unit to perform the specific positioning processing.
The current software version is 23.11.
All applicable information related to this software release can be found in the Software Release Note.
