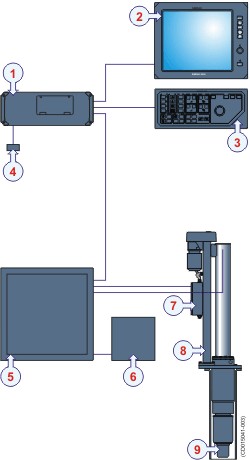

Simrad SC90 System diagram

The Simrad SC90 sonar system comprises a processor unit (computer), a transceiver unit, a power supply and the hull unit with the Motor Control Unit and the transducer.

A colour display is also required. This display is normally not a part of the sonar delivery.

The cable between the wheelhouse units and the transceiver in sonar room must be a high quality Ethernet cable. It can be purchased locally, or ordered from Simrad.


  1. Processor Unit
  2. Display
  3. Operating Panel
  4. Power supply for Operating Panel
  5. Transceiver Unit
  6. Power Supply Unit
  7. Motor Control Unit
  8. Hull Unit
  9. Transducer
