Simrad ITI Monitoring the trawl

The Normal presentation on the Simrad ITI system provides you with a complete overview of the trawl and catch situation.

The presentation is divided into three views:

  • The Horizontal view shows the distance and bearing to the trawl, door or wing spread and the catch.
  • The Vertical view shows the depth of the trawl, the sea temperature, the catch, the bottom contours from the echo sounder and the time lag between the vessel and the trawl.
  • The Aft view shows the height of the trawl, the bottom clearance and the trawl deviation from the ship's course line.

Additionally, the echo sounder's coverage at the trawl depth is shown.

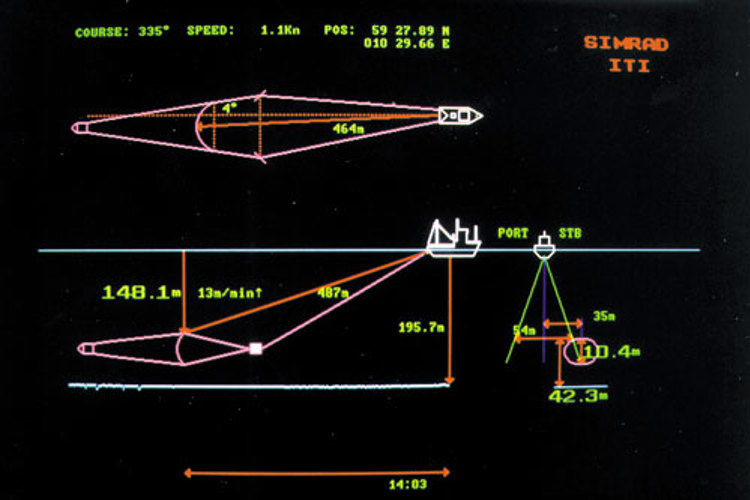

The Normal presentation on the Simrad ITI display.
