Simrad FS70 Display modes

The Simrad FS70 provides you with a clear sonar picture, a high resolution echogram, and easy operation.

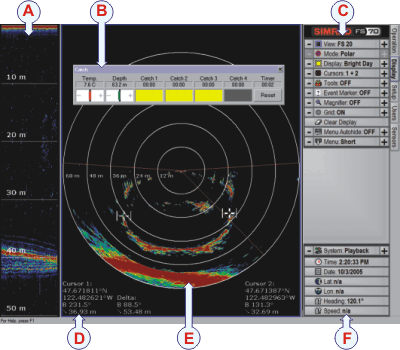

Full screen display


A: Echo sounder view

B: Dialogue for PI sensor status

C: Operation menu

D: Cursor information

E: Sonar echoes

F: System parameters

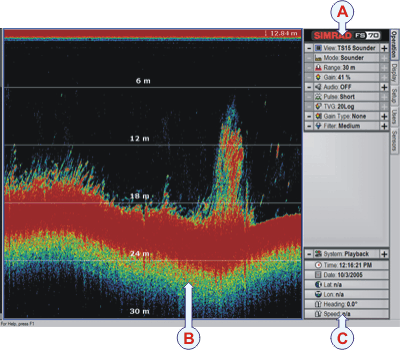

Echo sounder display


A: Operation menu
B: Headrope echo sounder view
C: System parameters
