Simrad CP200-5C

200 kHz transducer for current profiling

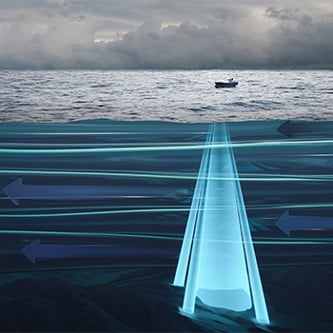

The Simrad CP200-5C is a specialized transducer designed for water velocity measurements and Fish-finding. The Simrad CP200-5C transducer housing contains three separate transducers set up to measure water velocity, and one single-beam transducer for traditional fish-finding. Due to its high operating frequency the CP200-5C provides accurate measurements and detailed echograms.

Transducer Installation

The transducer is normally mounted flush with the hull plating. A clamping frame is used to secure the transducer body to a mounting frame. The mounting frame is welded to the bottom plate. The transducer cable penetrates the hull using a cable gland. The cable gland consists of a bushing, rubber gasket, washers and a packing nipple. The transducer can also be flush mounted at the bottom of a blister or a drop keel.

Echo Sounder System Connection

The CP200-5C transducer is connected to an echo sounder system. For maximum measurement accuracy we strongly recommend that you connect a motion reference unit (MRU) to the echo sounder system. If a motion reference unit (MRU) is not available, use a motion sensor to measure roll and pitch. As a minimum solution a global positioning system (GPS) can be used.

Preparation for Precision Data

To obtain precision data that are both detailed and correct, it is necessary to align the transducer and measure its location and offset in relation to the vessel’s coordinate system. We recommend that the echo sounder system with the CP200-5C transducer is calibrated prior to use.
