M3 Sonar HF

Multibeam sonar

The M3 Sonar HF is a high-frequency sonar with imaging and profiling modes. It is an impressive upgrade to the original M3 Sonar, with an all-titanium construction and two-hundred percent higher resolution.

Distortion-free images over a 140° sector

Delivering superior image quality and coverage, the M3 Sonar HF provides high-quality distortion-free images over a 140° sector, reducing the time it takes to search for and locate targets. This versatile multibeam sonar offers both imaging and profiling capabilities.

High-resolution

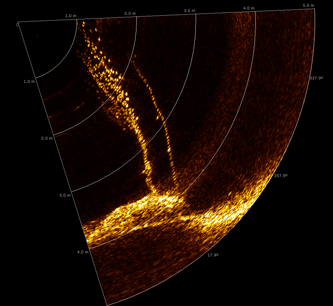

Imaging data gathered from the M3 Sonar HF is high resolution, with cm-level feature detection capabilities that can be exported to a GeoTiff image. Features can be detected in imagery data that are not apparent in traditional bathymetric data. In addition, using the M3 Sonar HF with a third-party software driver, such as SoundTiles software, provides automatically-mosaiced images.

Bathymetric data

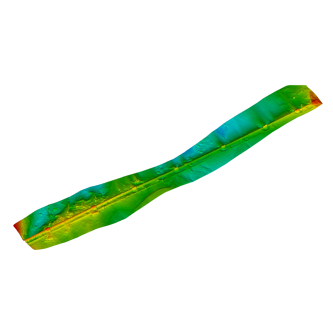

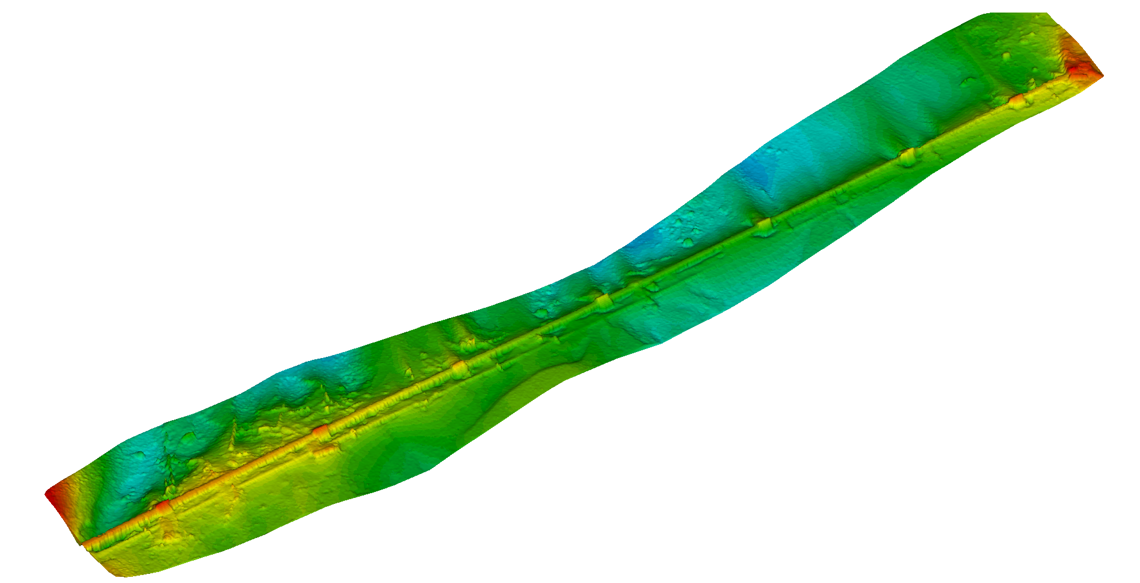

The M3 Sonar HF also provides excellent bathymetric data at very low cost. For profiling, using this sonar with HYPACK Hysweep provides 3D point-cloud data.

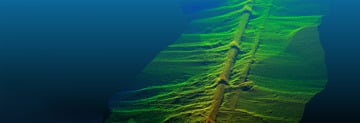

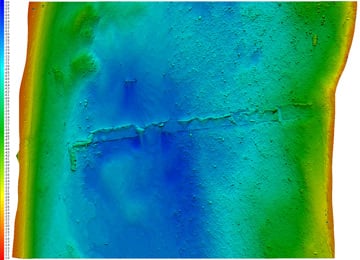

Bathymetric imagery

Key features

  • 4000 m and 6000 m depth ratings
  • 700 kHz long-range mode up to 100 m
  • Excellent resolution and full 140° coverage at 950 kHz
  • 1200 kHz and 1400 kHz for the highest resolution up close for target and feature identification
  • Portable enough to be deployed on an ROV or a Pole Mount
  • Distortion-free images at a high update rate
  • User-friendly interface
  • CW and CHIRP pulse types
  • Significant time savings
