Simrad PX15
The gear monitoring system that turns complexity into control
Despite its cost-effective position, the PX15 delivers the performance needed to genuinely optimise fishing efficiency. Its user interface simplifies complex technical concepts, making information accessible to any user, regardless of their familiarity with electronic systems.

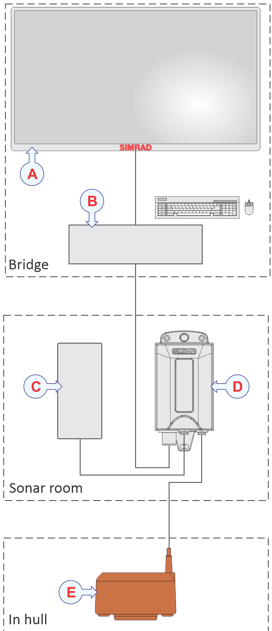

The Simrad PX15 system processes gear behaviour data in real time and, through advanced algorithms, generates concrete, actionable recommendations: trawl speed adjustment, optimal warp length, and gear configuration corrections. The result is a tool that turns data into decisions, improving the efficiency of every haul. The PX15 software is compatible with PXC Trawl sensors, PX miniDepth and PX Seine Sounder sensors, providing complete coverage for both purse seine and trawl operations. For telemetry, the PX15 includes the SR15 receiver.
From data to decisions in real time
The Simrad PX15 integrates advanced hydrodynamic modelling with real-time sensor inputs to deliver a precise evaluation of trawl performance. By combining user-defined gear parameters, such as rigging geometry, net dimensions, and configuration, with live measurements including door spread, pitch, roll, depth, and geometry, the system continuously calculates both theoretical and actual performance values. This comparison enables accurate assessment of gear efficiency, identification of deviations, and data-driven optimisation of fishing operations under real conditions.
- Operational benefits are:
- Accurate gear performance evaluation based on real vs theoretical comparison
- Immediate detection of deviations in geometry and towing conditions
- Data-driven decision-making for optimal trawl tuning
- Improved efficiency and consistency under real fishing conditions

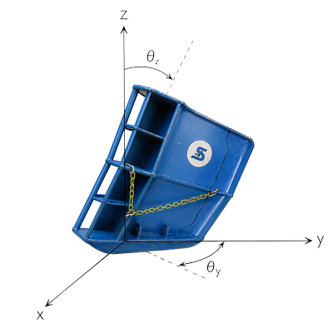

The "Suggestion" functionality
The Suggestion feature acts as an intelligent onboard assistant, continuously analysing gear performance and highlighting when key parameters deviate from optimal conditions. When it detects an issue, the system provides clear, actionable guidance to improve efficiency. For example, if it identifies excessive door roll due to too much warp deployed, the system will recommend gradually reducing warp length until the optimal angle is restored, ensuring stable gear behaviour and maximising catch performance.

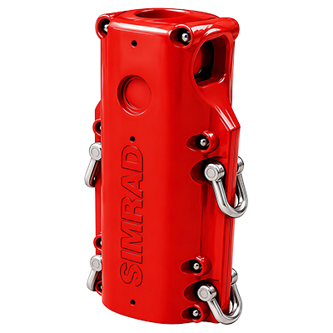

The PXC Sensor family
The Simrad PXC sensors represent the new generation of the SIMRAD range. We have designed them to offer advanced functionality to vessels that previously couldn't access this level of technology. The sensor’s performance-to-cost ratio makes them the benchmark choice for coastal and near-shore fleets. The PXC sensors include built-in charging functionality for safe, efficient battery management and direct 24 VDC charging capability. This allows you to recharge sensors quickly by applying power directly to the charging plug.
Simrad support and sales
Kongsberg Discovery owns the Simrad brand name, which is your assurance of quality. All Simrad products are backed by Kongsberg Discovery's extensive worldwide support and training. On the Support pages, we have provided the relevant Simrad contact information for professional fish-finding systems for direct assistance.
Simrad provides a global sales organization for product information, software updates, and purchases.
We encourage you to stay in touch via our Instagram, Facebook, X (Twitter), and LinkedIn social media channels.
Key features
- New gamified user interface simplifying complex data into clear visuals, alerts, and performance-driven feedback that is easy to understand and act upon
- Accurate gear performance evaluation based on real vs theoretical comparison

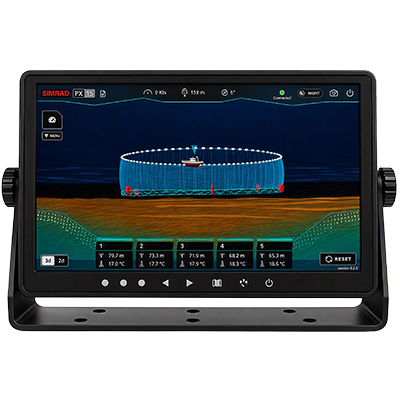

- Dedicated purse seine presentations with selectable 2D and 3D modes
- New real-time performance (RTP) feature for immediate detection of deviations in towing conditions
- Data-driven decision-making for optimal trawl tuning
- Smart battery charger with battery status monitoring from the bridge
- Precision trawl door and net geometry monitoring by continuous measurement of spread, height, roll, pitch and gear behaviour
- Record data and export for advanced analysis
