Simrad WBT
Wide band transceiver for use with fish-finding echo sounders and current indicator system

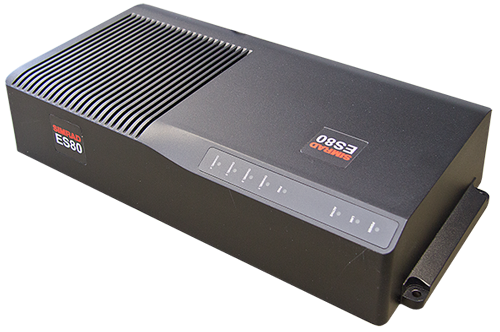

The Wideband Transceiver (WBT) is a highly efficient echo sounder and current indicator transceiver. It is used by small and large fishing vessels all around the world.
The WBT (Wide Band Transceiver) links your transducer (or transducers) to the echo sounder’s Processor Unit (computer). It controls acoustic transmissions and processes the echo signals that return from the water. It is a main component of your echo sounder system.
The WBT (Wide Band Transceiver) offers four 500 W channels. These can either work independently with single-beam transducers, or together with a split-beam transducer. The flexibility allows the transceiver to operate in echo sounder mode for fish-finding, or in ADCP (Acoustic Doppler Current Profiler) mode for current indicator operations.
How it works
When you use the echo sounder system, the WBT (Wide Band Transceiver) sends electrical signals to the transducer. The transducer converts these signals into sound pulses and transmits them into the water. After each transmission, the transducer receives the returning echoes and sends them back to the transceiver. The transceiver filters, amplifies, and converts the echo signals into digital data. The Processor Unit then uses this data to create the echograms and measurements you see on the display. This transmit-and-receive cycle is called a “ping”.
Advanced functionality
The WBT (Wide Band Transceiver) supports several transmission methods. You can use single-frequency pulses, frequency-swept pulses (FM/Chirp), and other waveform types. This allows you to adapt the system to different operating conditions and applications.
The transceiver also operates over a wide frequency range. It provides four independent channels. You can use these channels with single-beam transducers or combine them for split-beam operation. The receiver is designed for low noise and accurate processing of both weak and strong echo signals.
Simrad support and sales
Kongsberg Discovery owns the Simrad brand name, which is your assurance of quality. All Simrad products are backed by Kongsberg Discovery's extensive worldwide support and training. On the Support pages, we have provided the relevant Simrad contact information for professional fish-finding systems for direct assistance.
Simrad provides a global sales organization for product information, software updates, and purchases.
We encourage you to stay in touch via our Instagram, Facebook, X (Twitter), and LinkedIn social media channels.

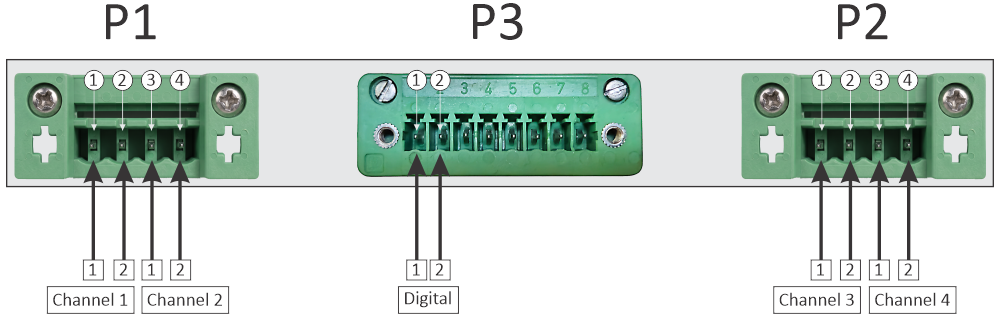

Transducer connections
Later versions of the WBT (Wide Band Transceiver) offers a new transducer connection panel. The three plugs you need are provided with the WBT delivery.
Key features
- Operates in both a fish-finding echo sounder system and in a current indicator (ADCP) system.
- Operating frequencies from 10 to 500 kHz
- Four channels controlled individually
- Connects to the Processor Unit with a high quality Ethernet cable
- Rugged and compact design
- Easy to install
