Simrad ES70 Display presentation

The echo sounder presentation fills the entire screen.

The echogram(s) takes up the largest part of the echo sounder window. By default, you will have two echograms for each frequency channel (transducer). When two or more frequencies are used, the echograms can be presented horizontally with one over the other, or next to each other, by means of the tabs on the task bar.

You can modify the size of the echograms by moving the boundary lines between the echograms. Click on a boundary line, hold the button depressed, and move the line horizontally or vertically.

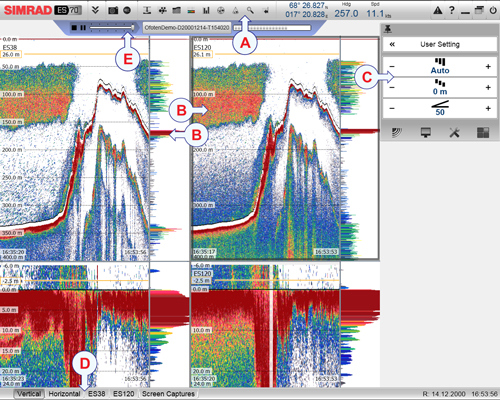

A. Title bar
B. Echograms
C. Main menu
D. Task bar
E. Replay bar (used during playback)
