Wideband Transmitters are used to transmit Telecommands or payload data to satellites as vital component on all satellite ground stations. The Wideband Transmitter feeds the uplink signal to the ground station antenna, which directs the signal to the receiving satellite.

Skip to content

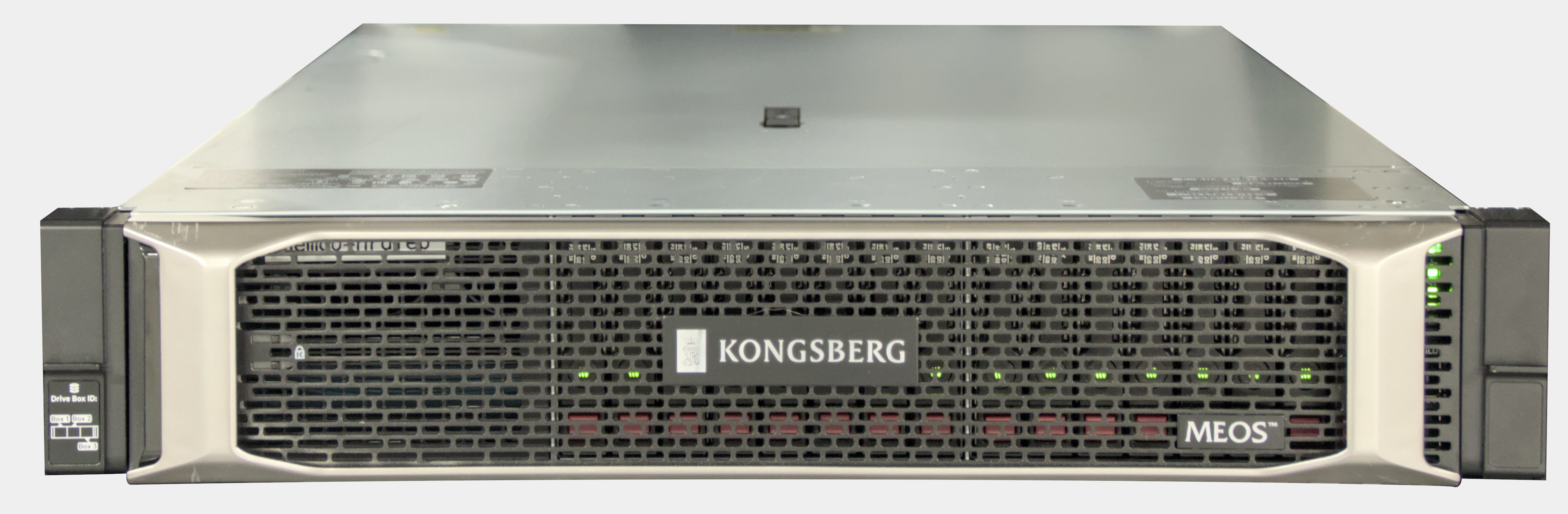

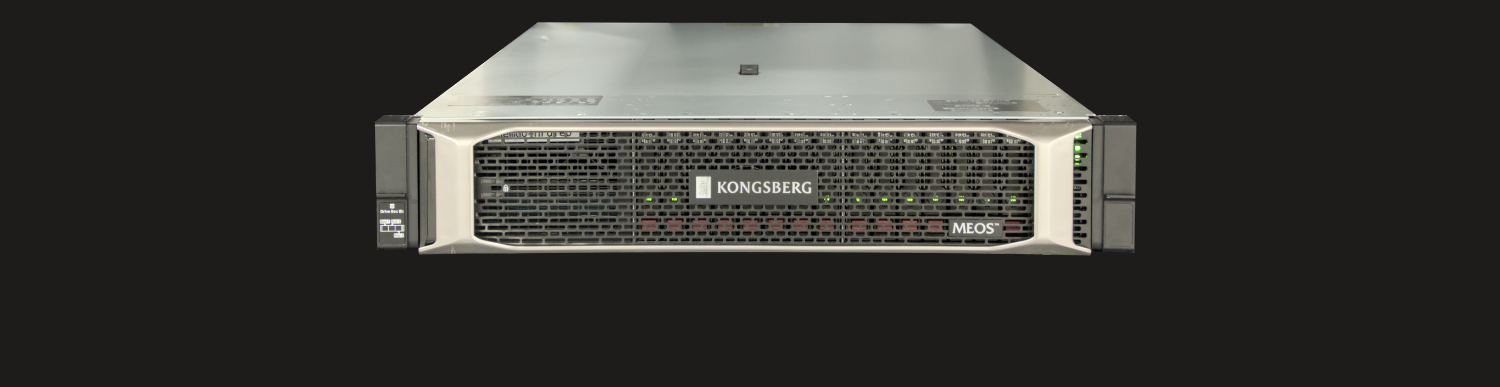

MEOS™ Capture HRTX V12 are specialized data transmitters for the satellite ground segment market. They support virtually all payloads and a variety of commonly used protocols and standards, at data rates reaching from very low to extremely high.

Designed to maximize performance, reliability and operational value, Kongsberg’s Wideband Transmitters represent the ideal choice for high reliability, cost-effective operations.

MEOS™ Capture HRTX V12 transmitters represent the result of more than over 40 years of Kongsberg expertise in satellite ground systems.

World-class technology and quality

MEOS™ Capture HRTX V12 offers the flexibility and performance needed to support multi-mission operations running 24/7. It provides dual channels with 1.5 GHz analog bandwidths and symbol rates from 200 ksym/sec up to 1200 Msym/sec and an aggregate data rate up to 12.5 Gbit/sec.

Heritage waveforms as well as CCSDS SCCC and DVB-S2(X) 1 protocols are supported.

Internal data format conversion includes Space Packet generation and CFDP file generation.

Output data is buffered internally or received & transmitted in real-time. Data is encoded & modulated as an analog output signal forwarded to the spacecraft.

Designed for reliability and ease of operation

MEOS™ Capture HRTX V12 supports externally controlled operation as well as autonomous operation based on TLE, including optional Doppler compensation of the uplink signal. Automation lowers operational costs and increases system reliability.

Integrated MEOSTM Ground Systems

MEOS™ Capture HRTX V12 can be integrated with MEOS™ Antenna, Wideband Receiver and M&C system to form a high-performance terminal for data reception and processing. This integration creates a comprehensive solution for users needing fast, reliable satellite communication.

MEOS™ Capture HRTX V12 can be provided as a separate unit or an integrated component in the MEOS™ Capture HRDFEP V12.

1 Download HRTX V12 product sheet for a full overview of supported Modulations & Coding combinations.
