Simrad ES38-7

38 kHz wideband split-beam transducer

Skip to content

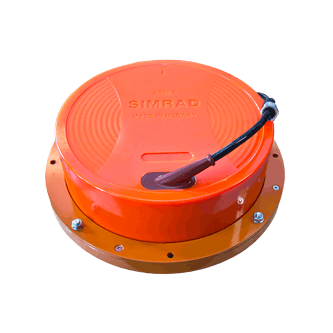

The Simrad ES38-7 is a wideband split beam transducer designed for fishery and ocean science applications.

Designed for fishery and ocean science applications

The Simrad ES38-7 is a wide-band split-beam transducer designed for fishery and ocean science applications. The beamwidth is 7 degrees at a nominal operating frequency of 38 kHz. The transducer is designed with four separate sectors and includes a sensor to measure the sea temperature.

Installation principles

The transducer is normally mounted flush with the hull plating or the bottom of a blister. It is provided with an installation flange, and using a clamping ring, it is secured to a mounting ring welded into the hull plating or the bottom of a blister. The clamping ring is provided with the transducer and already fitted. The transducer can also be flush mounted at the bottom of a drop keel. The transducer cable penetrates the hull using a stuffing tube and a cable gland.

Technical specifications

Observe the transducer datasheet for all relevant technical specifications. Use the link at the bottom of the page.

Simrad support and sales

Kongsberg Discovery owns the Simrad brand name, which is your assurance of quality. All Simrad products are backed by Kongsberg Discovery's extensive worldwide support and training. On the Support pages, we have provided the relevant Simrad contact information for professional fish-finding systems for direct assistance.

Simrad provides a global sales organization for product information, software updates, and purchases.

We encourage you to stay in touch via our Instagram, Facebook, X (Twitter), and LinkedIn social media channels.

Key features

  • Designed for fishery and ocean science applications.
  • Nominal frequency is 38 kHz.
  • Beamwidth is 7 degrees.
  • Maximum input power is 2000 W.
  • Delivery includes transducer, stuffing tube, cable gland and mounting hardware.
