EM 2040C MKII Multibeam echosounder, Max.500m

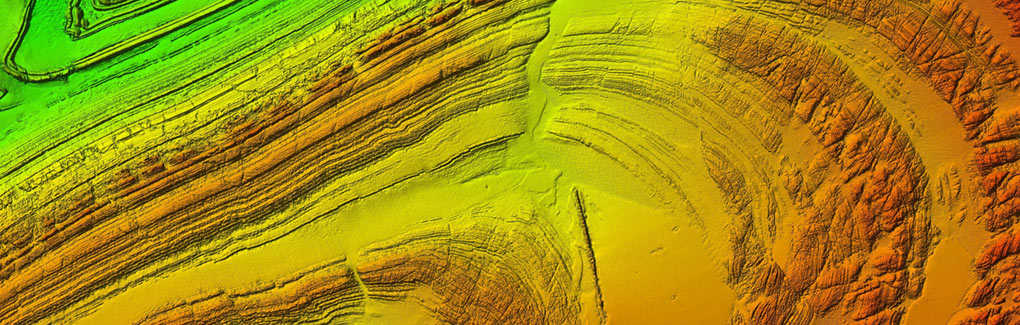

The EM 2040C is a shallow water multibeam echosounder based on the EM 2040 technology, an ideal tool for any high resolution mapping and inspection applications.
The operating frequency range is from 200 to 400 kHz with frequency selection in steps of 10 kHz, enabling the user to choose on the fly the best operating frequency for the application. Due to the large operating bandwidth available, the system has an output sample rate up to 60 kHz. The system can effectively operate with very short pulse lengths, the shortest pulse being 14 microseconds giving a raw range resolution (ct/2) of 10.5 mm. By utilizing both CW and FM chirp pulses, the system can achieve long range capability still maintain a high resolution. The maximum depth range for a dual head system in cold ocean water is 520 m at 200 kHz with a swath width up to 700 m. The angular coverage for 200 to 320 kHz modes are 140° with one sonar head, allowing coverage of 5.5 times water depth. For a dual transducer system, 200° angular coverage or 10 times the water depth is achieved on a flat bottom. As an option the EM 2040C MKII can be delivered with the dual swath capability, allowing a sufficient sounding density to meet survey coverage standards along track while maintaining a high vessel speed.
The basic EM 2040C MKII has three components: a sonar head, a processing unit and a workstation. The EM 2040C MKII can be delivered with the standard processing unit or a IP67 rated (24 VDC) portable processing unit. For real-time motion stabilization and compensation, data input from a motion sensor, heading and a positioning system is required. A sound speed profile of the water column is recommended for realtime correction, especially for a dual head system. The sonar head(s) may be delivered mounted on a frame together with the motion sensor and a sound speed sensor, factory aligned for ease of mounting. All electronics are contained in the sonar head(s) which is inter-faced to the processing unit via GBit Ethernet. The processing unit also supplies 48 VDC power via the same cable. Operator control, data quality inspection and data storage is handled by the hydrographic workstation running SIS software or by 3rd party software. EM 2040C is also available in a 1500m depth rated version with a 130° swath for ROV or AUV operations.
EM 2040C MKII multibeam system features
- High resolution
- Wide frequency range
- Short pulse lengths and large bandwidth
- Extended range due to Frequency Modulated (FM) chirp
- Complete roll and pitch stabilization
- Nearfield focusing both on transmit and receive
- Water column data (standard)
- Seabed image (standard)
- Sonar head is depth rated to 50 m
- Easy to install, convenient for small boats
- Single and Dual Head models
- Dual swath (multiple pings)
Kongsberg Maritime software
Third party software
Post processing software
- QPS Qimera - advanced multibeam bathymetry processing software
- QPS Fledermaus - 4D geo-spatial processing and analysis tool
- Geocap Seafloor integrated with Neptune for digital terrain modelling
- BeamworX AutoClean
- Eiva NaviSuite NaviEdit and NaviModel
- CARIS HIPS/SIPS post processing
Note: KONGSBERG is not responsible for any system malfunction caused by 3rd party software.
If you would like to be informed when a software update is available, please click here to sign up to the mailing list.
